MBike: it is much more than a bike

THE MODULAR BICYCLE

MBike (Modular Bike), concept, design and style of an innovative project.

MBike is an innovative modular bicycle, that can be easily disassembled without any tool. This bike is customizable and it is easy to carry. It has been designed to be your everyday travel companion. MBike revolutionary features allow you to quick disassembly the frame in “modules”, thus allowing to get not just one kind of bicycle, but a modular and upgradeable system. MBike is a means of transport tailored to fit to your daily needs.

Bike

Electric Bike

SMONTABILE

La prima City Bike al mondo, di taglia regolare, che puoi SMONTARE con movimenti semplici e veloci, con notevole riduzione degli ingombri massimi pressappoco alla dimensione delle due ruote.

TRASPORTABILE

Vivi la quotidianità in maniera differente, attraverso la possibilità di portare con te la bike, in qualsiasi posto, senza doverla parcheggiare all’aperto, con notevoli vantaggi sia nei tempi che nella sicurezza rispetto ai furti.

SALVASPAZIO

Compatta come un trolley una volta riposta nella sua custodia – bag, la puoi trasportare dentro treni, bus, Metropolitana e nel bagagliaio della tua auto. Potrai riformulare i tuoi spostamenti per lavoro, svago e vacanze in modo creativo e spensierato.

SPECS


Frame size	L
Tyres	28″/ 700x40C

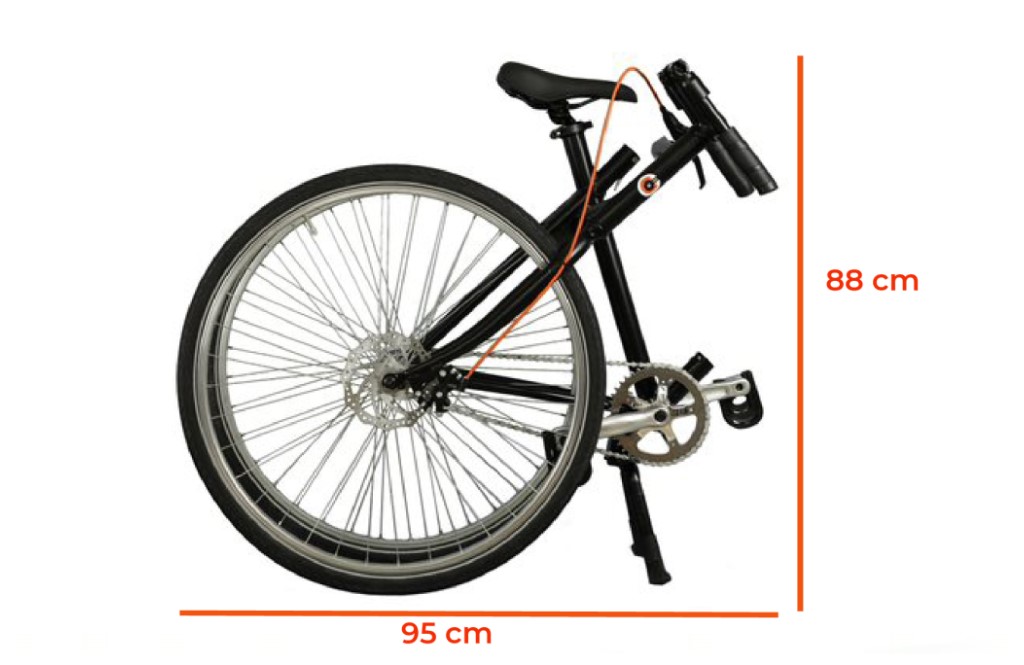

Disassembled bike sizes	95x88cm
Frame material	Al 6061 + Al 7075
Material fork	Carbon steel
Bike weight	13 kg
Gear ratio	Single speed 46/20
Front fork	Rigid
Rear fork	Rigid
Front brake	V Brake / Disk brake 160mm
Rear brake	Coaster brake
Handlebar	Foldable (open width 565mm/closed width 140mm)
Pedals	Foldable
Headset	A-Head
Stem	Aluminium
Saddle	Foam
Seatpost	Aluminium
Rims	Iron – air chamber
Paint color	Jet black / Pure white

CUSTOMIZE YOUR MBIKE ACCORDING TO YOUR NEEDS

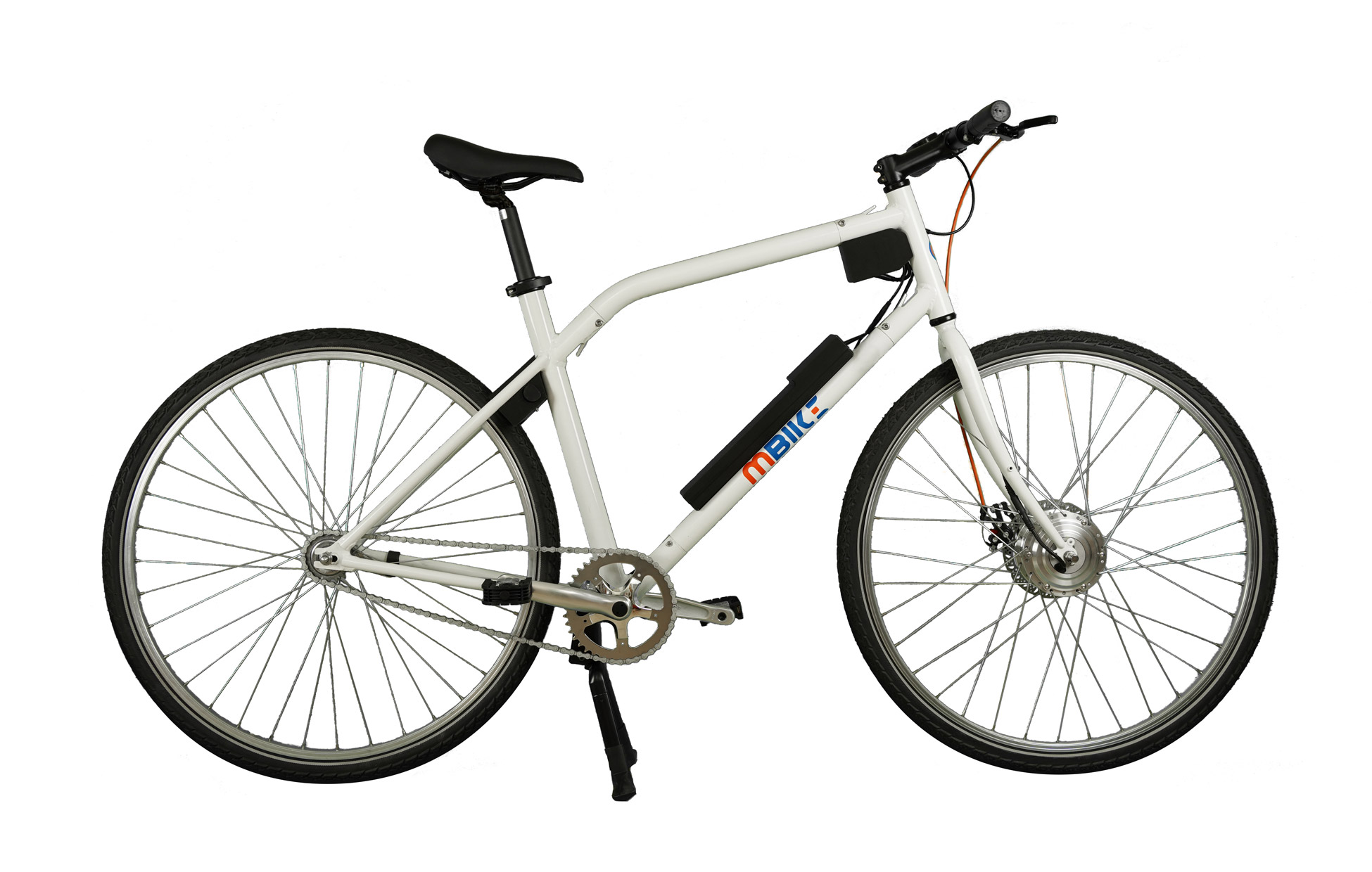

Transform your Mbike from muscular gear to pedelec assist according to your needs by replacing two bicycle’s modules.

Two colors available: white or black, as you prefer it.

Produzione snella

MBike è configurata direttamente dal cliente fin dal momento dell’acquisto, questo permette di ridurre le scorte dei materiali, evitare gli eccessi di produzione rispetto all’effettivo fabbisogno e velocizzare il processo produttivo, nell’ottica di una potenziale riduzione dei costi di produzione e gestione.

GREEN INTO THE GREEN MARKET

The modularity feature of MBike helps to optimize the production cycle of the frame thus reducing wasted materials and their negative effects on the manufacturing cycle. Moreover, thanks to the disassembly feature of the frame and to its portability, it is possible to reduce the size and the material of the packing. At last, the small size of a disassembled MBike increases the number of bicycles that can be shipped, thus reducing the pollutant emission related to deliver and distribution

MODULARITY AND REUSE

The MBike’s frame modules are mass produced, for this reason each module work as an interchangeable part.

Interchangeability allows you to:

• replace the damaged modules without having to replace the whole bicycle.

• implement your MBike system with additional modules, to get different configurations in a single bicycle.
